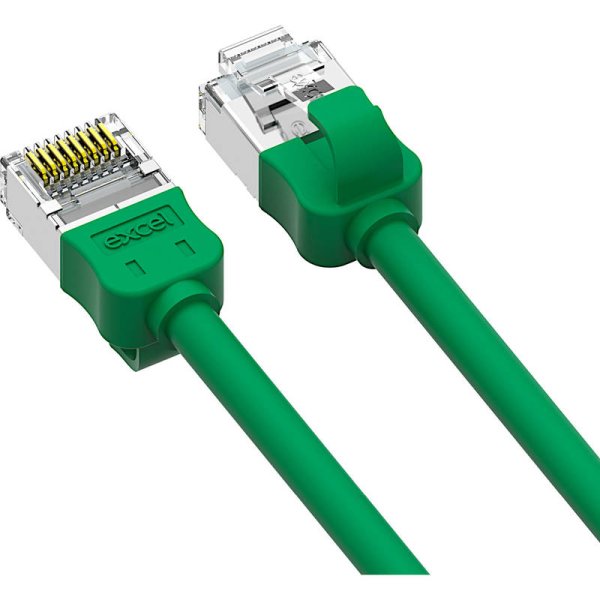

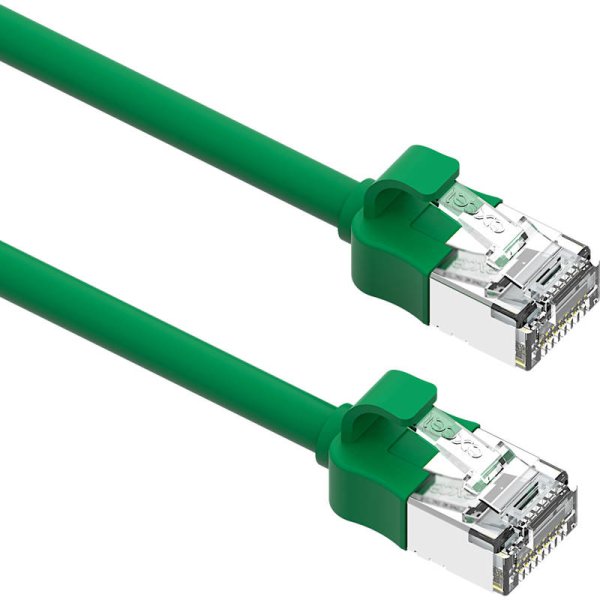

Excel Cat6A Mini RJ45 Ethernet Patch Cable 28AWG LSOH 2m Green

Excel 28AWG Cat6A mini patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class EA/Augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of 10GBase-T, 10 Gigabit Ethernet and PoE++.

Each Excel Category 6A patch lead consists of 4 twisted pairs of 28AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair suitable in screened or unscreened installations. These pairs are then cabled together, with different lay lengths to ensure optimum performance.

Staggered pin RJ45 screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots with small new design plug unique to excel making them a great patch chord for use in high density patching with better airflow and tidier installations.

• 28AWG Cat6A high flexibility
• Suitable for 10 Gigabit 10GBase-T applications
• Supports PoE++ applications
• Individual foil screen over each pair
• Blade style moulding with clip protector
• Suitable for screened or unscreened installations
